Quartz Banger Guide for Sizes, Angles, Fit and Buying
A quartz banger may look like a simple bucket attached to a glass joint, but most buying mistakes have almost nothing to do with the bucket. Before choosing a design, check four things. You need the correct joint size, the correct male or female connection, the correct 45-degree or 90-degree angle, and the correct bucket dimensions if you plan to reuse a carb cap or other accessory.
After dealing with replacement glass parts, adapters, bowls and bangers for years, I have found that compatibility mistakes cause more trouble than fancy bucket designs ever solve. A perfectly made banger is still the wrong banger if it does not fit the rig sitting on your table.
Most modern glass connections use 10mm, 14mm or 18mm joints. A male banger fits a compatible female joint. A female banger fits over a compatible male joint. If the rig joint stands relatively upright, a 90-degree banger commonly keeps the bucket level. An angled joint usually calls for a matching 45-degree design.
If you already know those measurements, you can compare our quartz bangers and dabbing accessories. If you are still trying to tell 14mm from 18mm, start with our Glass Joint Guide before ordering anything.
What Is a Quartz Banger?
A quartz banger is a bucket-shaped attachment made from fused quartz. A typical design includes a bucket, neck and ground-glass joint. Modern versions may use a simple flat top, thicker bottom, slurper-style lower section, blender-style chamber or other variations.
You will also see terms such as quartz nail, banger nail and dab nail used around the same category of accessories. Older nail designs may be made from quartz, titanium, ceramic or glass, while the modern quartz banger usually has the recognizable bucket shape.
The useful thing about quartz is not marketing language. It is the material itself. Manufacturer technical data places the average thermal-expansion coefficient of fused quartz at roughly 5.1 × 10−7 per Kelvin between 0°C and 100°C. Thermal conductivity at 20°C is roughly 1.38 W/m·K.
Those are unusually low expansion numbers for a glass-like material. They help explain why fused quartz tolerates rapid temperature changes better than many ordinary glasses. They do not mean the finished banger is impossible to crack.
Check These Four Things Before Buying
| Specification | What it tells you | Why it matters |
|---|---|---|
| 10mm, 14mm or 18mm | Joint diameter | The banger must match the receiving connection |
| Male or female | Joint direction | Male fits female and female fits male |
| 45° or 90° | Neck angle | The angle should suit the existing glass joint |
| Bucket diameter | Upper bucket measurement | Important when matching caps and accessories |
I check those specifications in that order. Style comes later. It is easy to get distracted by a thick bottom, slurper design or elaborate shape and forget that the basic connection is what decides whether the part can actually be used with the glass you already own.
10mm vs 14mm vs 18mm Quartz Bangers
The three common joint diameters are 10mm, 14mm and 18mm. The difference between each step is only about 4 millimeters, but ground-glass joints are made to fit closely. Four millimeters is more than enough to turn an attractive replacement into a part that does not connect.
10mm Bangers
A 10mm joint is the smallest of the three common sizes and often appears on compact rigs and smaller glass pieces. Do not assume a small-looking rig automatically uses 10mm. Check the product specifications or measure the actual connection.
14mm Bangers
Fourteen millimeters sits in the middle and appears across many standard-size glass pieces. It also has broad replacement availability, which is one reason you see so many 14mm bangers, bowls and related accessories online.
The important detail is that the number alone is still incomplete. A 14mm male banger and a 14mm female banger are opposite connection styles.
18mm Bangers
An 18mm joint provides a larger connection and is commonly seen on larger glass pieces. Bigger does not mean higher quality. If your rig takes a 14mm attachment, an 18mm banger is simply the wrong size.
Our Glass Joint Guide converts the common sizes to approximately 0.39 inch for 10mm, 0.55 inch for 14mm and 0.71 inch for 18mm. I still recommend working in millimeters because that is how replacement glass is normally listed.
Male and Female Bangers Must Match the Opposite Joint
Joint gender is easy once you stop looking at the bucket and look at the connection underneath it. A male ground joint inserts into a female receiving joint. A female banger fits over a compatible male joint.
For example, a rig with a 14mm female receiving joint normally takes a 14mm male banger. A rig with a 14mm male joint normally needs a 14mm female banger.
Adapters can sometimes solve a mismatch, and we carry several options in the Glass Adapters and Converters collection. I still prefer a direct correctly sized connection when possible. Every adapter adds another joint, more height and another piece of glass to handle.
45-Degree vs 90-Degree Quartz Bangers
The angle describes the relationship between the banger bucket and its joint. A 90-degree design commonly suits a receiving joint that points relatively upright. A 45-degree banger is shaped for an angled joint.
The goal is not to choose whichever number sounds better. The goal is to have the bucket sit in a sensible position when connected to the existing glass.
This is one of those specifications that is much easier to understand when you compare real products.
Three Current Quartz Bangers and Who They Fit
These three examples cover three different connection situations. I chose them because each one teaches something useful about fit instead of simply showing three versions of the same product.

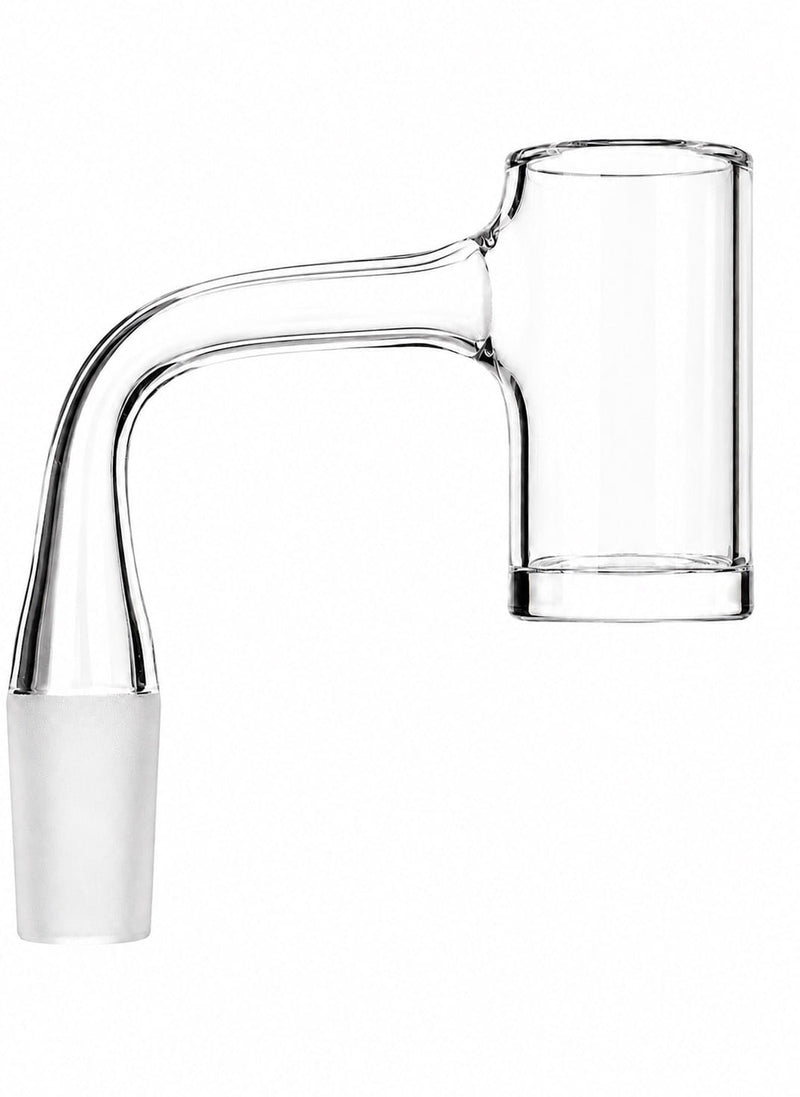

14mm Quartz Banger – 90° Flat Top
Our 14mm Quartz Banger with 90° Flat Top is the straightforward example for a compatible 14mm female joint that sits relatively upright.
The live product is listed with a 14mm male connection, 90-degree neck, flat top, clear quartz, thick double-wall bucket and fully welded construction. It is currently listed at $16.99.
I like this example for someone who already knows they need a conventional 14mm male replacement and does not need a complicated lower chamber. The specifications answer the important questions before appearance enters the decision.

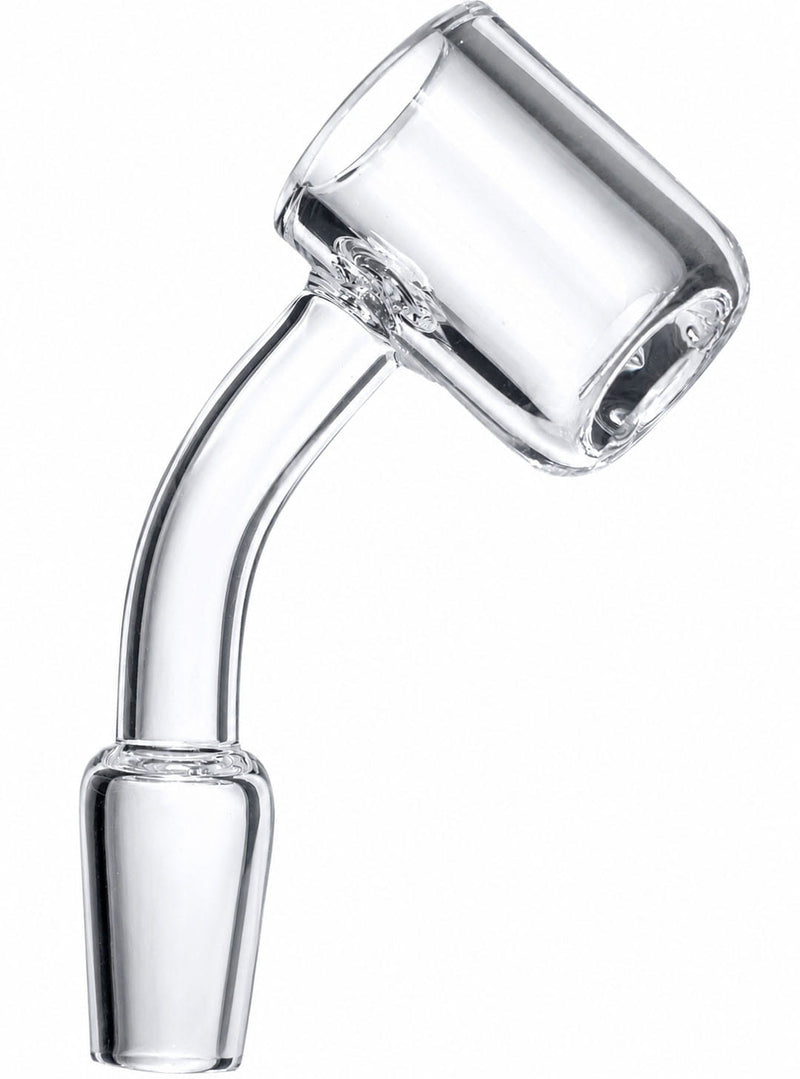

45° Quartz Bucket Banger – 14mm or 18mm Male
The 45° Quartz Bucket Banger is available with either a 14mm or 18mm male joint. The bucket is listed at 4mm thick and the current price is $16.99.
This is the product I would use to explain why joint angle matters. If the existing female joint leaves the glass at an angle, a matching angled banger can position the bucket more naturally than a 90-degree neck.
Do not choose the 18mm option simply because it is larger. Choose whichever diameter matches the existing female joint.

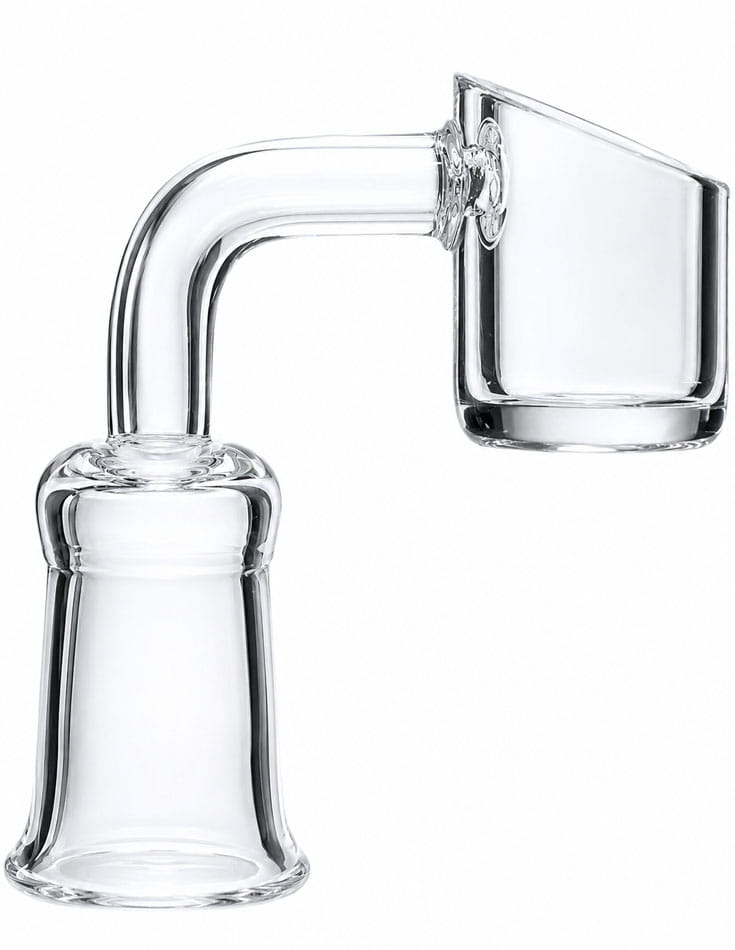

RaptorGlass 90° Quartz Bucket Banger – 14mm or 18mm Female
The RaptorGlass 90° Quartz Bucket Banger shows the opposite joint configuration. It is available with a 14mm or 18mm female connection and is designed for a compatible male glass joint.
The clear bucket is listed at 4mm thick, uses a 90-degree neck and is currently $16.99.
This example matters because people often see the same 14mm number on two products and assume both will fit. A 14mm male and 14mm female banger are not interchangeable. They connect in opposite directions.
You can compare the rest of the current options in our Dabbing Accessories and Quartz Bangers collection.
What Does a 25mm Bucket Mean?
Bucket diameter and joint size describe different parts of the same banger. This causes more confusion than it should.
If a product has a 14mm joint and a 25mm bucket, the 14mm measurement refers to the ground connection that fits the rig. The 25mm measurement refers to the upper bucket dimension specified by the manufacturer.
A 25mm bucket therefore does not require a 25mm rig joint.
Bucket dimensions matter most when you already own a carb cap or another accessory that needs to sit correctly over the top. I have seen buyers get the 14mm joint absolutely right and still discover that the cap they already own does not fit the new bucket.
Flat-Top Bangers
A flat-top banger uses a level upper rim rather than a strongly angled or unusual opening. The simple rim can work with many compatible caps, provided the dimensions actually match.
The word flat top does not tell you the joint size, gender or angle. Those still need to be checked separately.
For a first replacement, I often prefer looking at a simple bucket because there are fewer specifications competing for attention. Once you understand fit, more complicated shapes are much easier to compare.
Flat Top vs Terp Slurper vs Blender
These names describe the upper and lower bucket construction rather than the ground joint itself.
A conventional flat-top banger uses a relatively simple open bucket. A slurper-style design adds lower sections and extra openings. Blender-style designs use a different lower chamber geometry.
That means a 14mm flat-top banger and a 14mm slurper may connect to the same compatible rig while looking completely different above the joint.
I would not start with the style name. Start with size, gender and angle. Once those match, compare the bucket design according to the complexity you actually want to maintain.
Does Quartz Thickness Matter?
Yes, but thickness is not a quality score by itself.
Commercial bangers are sold with noticeably different wall and bottom thicknesses. Current examples across the market include roughly 2mm, 3mm and 4mm construction. A thinner design contains less quartz mass, while a thicker design contains more material.
More material changes the way the part responds to heating and cooling. What I would not do is automatically assume the thickest banger is the best one.
Joint finish, weld quality, bucket alignment and consistent construction matter too. I would rather own a cleanly made moderate-thickness banger than a very thick one with an obviously poor neck connection.
Why Quartz Handles Temperature Change Well
Fused quartz expands very little as temperature changes. Technical quartz data places its mean expansion coefficient around 5.1 × 10−7/K between 0°C and 100°C and around 5.4 × 10−7/K across the broader 0°C to 600°C range.
Its thermal conductivity is also relatively modest at approximately 1.38 W/m·K at 20°C. Different wall thicknesses, bottoms and bucket shapes therefore do not all respond exactly the same even when they are made from the same basic material.
This is one of the reasons two 14mm quartz bangers can feel very different in your hand and behave differently under changing temperature even though the joint specifications are identical.
Quartz Is Heat Resistant but Not Indestructible
Technical fused quartz has impressive high-temperature properties. Depending on grade, published continuous working temperatures range approximately from 950°C to 1160°C, with short-term technical values around 1200°C to 1300°C. Softening temperatures fall roughly between 1600°C and 1710°C.
Those figures describe the raw material under controlled technical conditions. A finished banger is not a perfect laboratory test sample. It contains a neck, welds, ground joint, edges and sections of different thickness.
A chip, scratch, weak weld or existing crack changes the situation completely. Heat resistance should never be interpreted as permission to treat quartz carelessly.
The Weld Is Worth Inspecting
The neck-to-bucket connection is one of the places I pay close attention to when looking at a banger.
Good quartz in the bucket cannot compensate for a visibly poor structural connection. Look at the transition where the neck meets the bucket and where the neck approaches the ground joint.
I am looking for smooth alignment and a reasonably consistent connection rather than an extremely thin, twisted or obviously irregular area.
This is one reason I do not judge replacement quartz from the front product photograph alone.
Do Not Force a Banger Into the Joint
A correctly matched ground joint should seat without excessive force. If a part you believe is 14mm will not connect properly to another supposed 14mm joint, stop before pushing harder.
The issue may be incorrect sizing, residue, manufacturing tolerance or previous damage.
Quartz is hard, but it is still brittle. Manufacturer data puts common fused-quartz hardness roughly around 5.5 to 6.5 on the Mohs scale. High hardness does not mean a narrow ground joint should be twisted or knocked against another piece of glass.
Thirty seconds spent checking a joint is cheaper than replacing both parts after one of them chips.
Quartz vs Titanium Nails
Quartz and titanium solve the same general attachment problem with completely different materials.
Titanium is metal and is much less likely to fracture from an ordinary bump. Quartz is transparent and makes the condition of the bucket, residue and cracks easy to inspect visually.
I would not say one material automatically wins. If physical impact resistance is the main priority, titanium has an obvious material advantage. If you prefer a transparent bucket where you can visually inspect buildup and damage, quartz has its own practical advantage.
Current titanium nail and collector-tip options are also available in our Dabbing Accessories collection.
Quartz vs Ceramic Nails
Ceramic is another heat-resistant material used for nail-style attachments. It is opaque rather than transparent and, like quartz, still needs careful handling because rigid ceramic can chip or fracture.
Quartz makes visual inspection easier. That does not mean every quartz banger is automatically better made than every ceramic nail.
Compatibility comes first. Construction comes second. Material preference comes after those basics.
Why Quartz Bangers Become Cloudy
A clear quartz bucket can gradually become hazy, cloudy or rough-looking. People often use the word chazzing for severe permanent clouding or surface damage.
Not every cloudy mark means the quartz is permanently ruined. Residue or mineral deposits may still be sitting on the surface. Permanent surface change is different.
Routine cleaning makes far more sense than waiting until the bucket is heavily coated and then attacking it with something hard enough to scratch quartz.
Cleaning Quartz Without Adding Extra Stress
Let the banger cool before deeper cleaning. I avoid exposing very hot quartz to cold cleaning liquid or water because creating a huge temperature difference adds stress for no useful reason.
Once cool, soft cotton swabs are gentler than metal scraping tools. Isopropyl alcohol is commonly used for deeper cleaning of compatible cooled quartz, but it is flammable and must stay away from flames, sparks and hot surfaces.
For a broader glass-cleaning routine, see our Glass Cleaning Safety Guide. If you use a butane torch around compatible equipment, our Butane Torch Lighter Safety Guide covers general handling and storage precautions.
When Should a Quartz Banger Be Replaced?
Cosmetic staining alone does not necessarily mean immediate replacement is required. Structural damage is a different situation.
I would stop using a banger with a visible crack through the bucket, a badly chipped ground joint, serious damage around the weld or a crack spreading through the neck.
The neck and joint deserve particular attention because they receive mechanical force every time the banger is installed or removed.
Quartz age by itself tells you very little. Condition matters much more. A clean older part with sound joints may be in better shape than a newer banger that has been chipped or handled badly.
How Much Does a Quartz Banger Cost?
There is no single market price because construction, brand, thickness, shape and included accessories vary widely. A bare conventional bucket usually costs less than an elaborate multi-piece set.
On Simple Glass Pipe right now, the three examples in this guide are each listed at $16.99. That includes the 14mm 90-degree flat top, the 14mm or 18mm male 45-degree bucket and the RaptorGlass 14mm or 18mm female 90-degree bucket.
Treat those as current examples rather than permanent prices. Inventory and pricing can change.
More important, do not let a small price difference convince you to buy the wrong connection. A $16.99 banger that fits is more useful than a $60 attachment that cannot connect to your rig.
Where Can You Buy a Quartz Banger Online?
When buying online, I would look for a product page that clearly states joint size, male or female configuration, angle, material and meaningful bucket specifications.
Photos are useful, but they should confirm the specifications rather than replace them. A 14mm and 18mm bucket can look almost identical on a screen when there is nothing beside them for scale.
At Simple Glass Pipe, you can compare current quartz bangers, nails, carb caps and replacement accessories. If you need the main glass piece as well, see our Dabbing Bongs and Glass Rigs.
What I Check After Years of Selling Glass Accessories
My routine is not very exciting, which is probably why it works.
- Confirm whether the joint is 10mm, 14mm or 18mm.
- Confirm whether the receiving connection is male or female.
- Check whether the glass joint is closer to 45 degrees or 90 degrees.
- Measure the bucket if you want to reuse an existing cap.
- Look closely at the neck and weld.
- Check wall and bottom construction.
- Only then compare flat tops, slurpers, blenders and more complicated styles.
After handling enough replacement parts, I have learned that complexity can be distracting. A customer can spend twenty minutes comparing wall thickness and unusual bucket shapes, then discover the joint itself was wrong from the beginning.
Fit is boring until it is wrong. Then it becomes the only specification anyone cares about.
Quartz Banger FAQ
What size quartz banger do I need?
Match the banger to the glass joint you already own. Common sizes are 10mm, 14mm and 18mm. You also need the opposite joint gender and an appropriate angle. A 14mm female rig joint normally needs a 14mm male banger. Check the original product specifications or measure the joint before ordering.
What is the difference between a 45-degree and 90-degree quartz banger?
The number describes the angle between the bucket and the joint. A 90-degree banger commonly suits a more upright receiving joint, while a 45-degree banger is designed around an angled connection. Choose according to the glass you already own rather than assuming either angle is automatically better.
Is a 14mm quartz banger better than an 18mm banger?
No. Joint diameter is mainly a compatibility specification rather than a quality rating. A 14mm banger is correct for a compatible 14mm connection, while an 18mm banger is correct for a compatible 18mm connection. Construction and workmanship should be evaluated separately from joint size.
Does every carb cap fit every quartz banger?
No. Carb caps and banger openings vary in diameter and shape. A banger may fit the rig perfectly while an older carb cap does not fit the new bucket. If you plan to reuse a cap, compare its dimensions with the new banger before ordering.
When should I replace a quartz banger?
Replace it when you find real structural damage such as a spreading crack, badly chipped ground joint, damaged weld or fracture through the bucket or neck. Cosmetic staining alone is different from structural damage. Inspect the connection and weld regularly rather than judging the part only by age.
Final Thoughts
Quartz bangers have some impressive material science behind them, but the buying decision is much simpler than the numbers make it sound. Start with joint size. Match male with female. Choose the correct angle. Check bucket dimensions if you want to reuse existing accessories.
After that, thickness, weld construction and bucket style become useful comparisons instead of distractions.
That is still how I look at replacement glass after years of handling it. I would rather buy a simple banger with the right connection and clean construction than an elaborate one chosen because the product photo looked interesting.
If you already know your joint specifications, compare the current Quartz Bangers and Dabbing Accessories. If you are not completely sure whether the glass is 10mm, 14mm or 18mm, use the Glass Joint Guide first. That one-minute check can save an unnecessary return.
